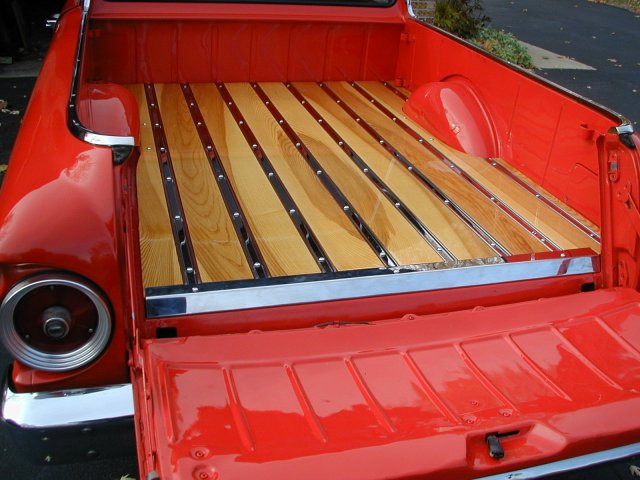

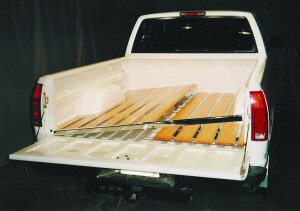

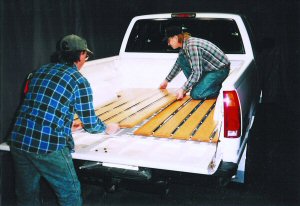

This Show Deck was designed for all applications where the original floor of the vehicle is a steel structure, or your truck is finished and you don't want to remove the existing floor. Easily assembled outside the truck and installed in minutes, this deck can be used for shows and cruisin'. The skid strip screws are attached to the aluminum subframe, eliminating the need to drill any holes in your pickup floor. This allow you to remove the Show Deck for hauling and everyday use.
Use of the rubber-padded, extruded aluminum subframe prevents scratches as well as allowing proper air movement to ensure moisture control between the wood deck and pickup floor.
These decks are available finished or unfinished and are also available with steel, stainless steel or polished stainless steel hardware. A screwdriver and tape measure are all the tools needed to assemble the deck.
The Show Deck is custom made to order. The price varies according to type of wood, metal and finish.

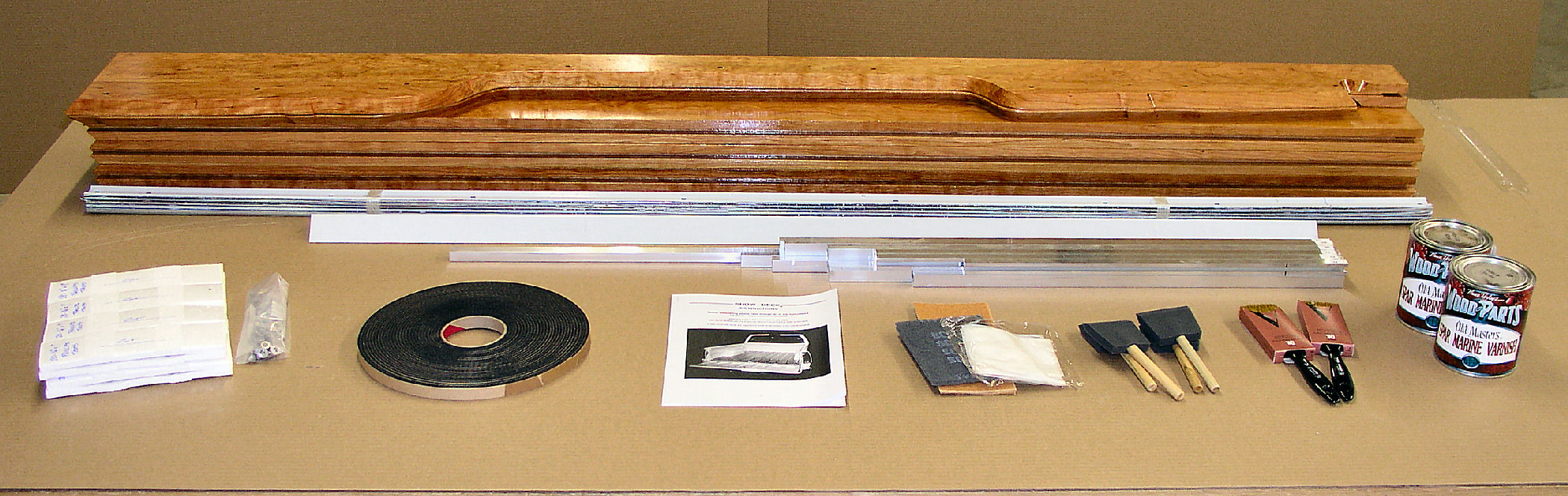

Complete Kit Contents. Click on Picture to enlarge

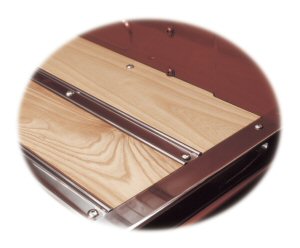

REAR SILL ANGLE
This formed angle covers the tailgate end of the show deck, creating a finished look. It's available in matching stainless to complement the skid strips.
Specially selected, kiln-dried hardwoods are completely machined to fit your truck. American ash or oak is our standard featured wood. Other species such as walnut, cherry, mahogany, purple-heart, teak, bubinga and butternut are available at extra cost.
Mix or match these fasteners with the skid strips and angle. Includes enough pieces to assemble the Show Deck.
These roll-formed, stainless steel strips are cut to shape and have holes punched in the proper locations. Polishing and buffing to a mirror finish is optional
After much testing, we have put together what we feel are the best finishing materials in a kit form. The kit includes a marine-grade, tung oil-base spar varnish with ultraviolet blockers built in: a special reducer containing naptha; two quality natural bristle brushes; four foam brushes; garnet sandpaper; Scotchbrite pad; a tack cloth; and complete instructions.

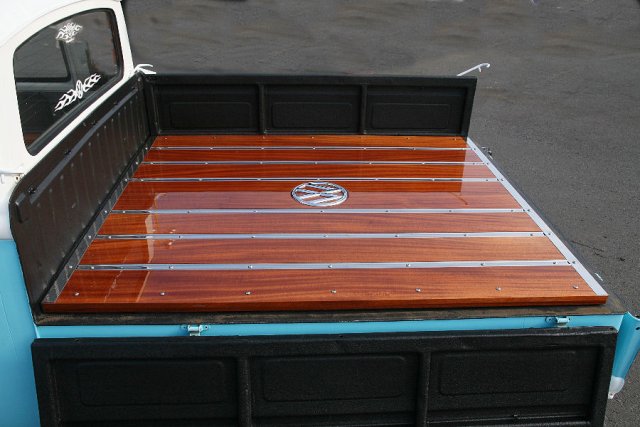

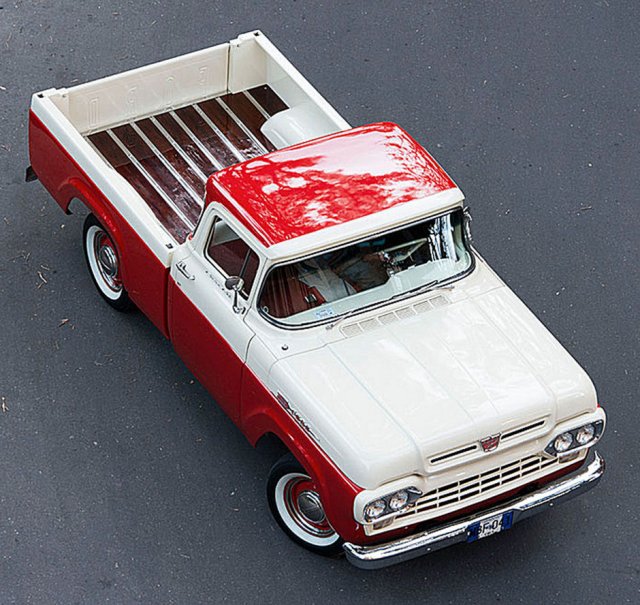

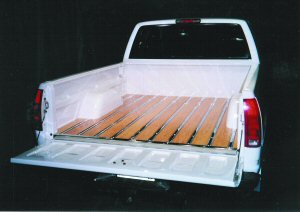

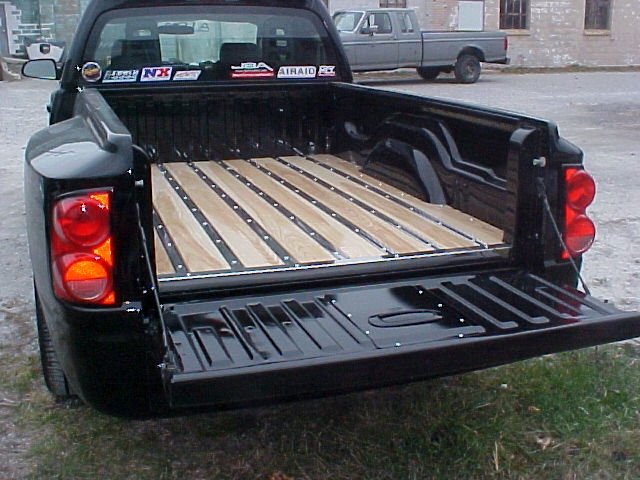

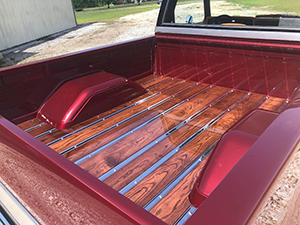

Complete Show Deck
Short Box Stepside
up to 82" including Sportside and Flareside
$975 plus shipping
Short Box Wide Bed
up to 82" including Fleetside, Styleside, Splash
$1,205 plus shipping
Long Box Wide Bed
over 82" including Fleetside, Styleside, Ranchero and El Camino
$1,520 plus shipping

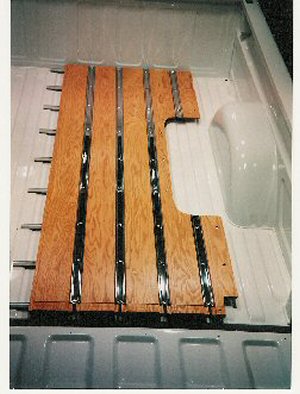

We provide a complete guide to assembling and installing your Show Deck.
FINISHING SERVICE AVAILABLE
We will apply an Exterior grade high-quality Marine Spar Varnish or Water-borne Spar Urethane finish to your Show Deck. We will work with you to satisfy your particular needs.
Complete assembled Show Decks are availabe but need to be shipped via Motor Freight because of the assembled size.
