Dodge Skid Strip Bolt Sets





Each set includes enough fasteners to attach the skid strips and box-to-bed angles
THE CUSTOM SET is all type 18-8 stainless steel with the bolt heads and top washers polished and buffed to a mirror finish.
THE BUILDER SET is available with all stainless steel carriage bolts and nuts, locks and flats. You can polish these or use as is.
THE ECONOMY SET is all zinc-plated steel parts.

We supply "square neck" carriage bolts.
Add $25 per set for "rib neck" type carriage bolts.

        Custom
    Economy Builder Polished
Year and Size and Skid Strip Length Count Steel Stainless Stainless Weight
'39-'47 Short Step Low Side. 78" 49 Bolt Set $24 $41 $68 5 lbs
'48-'50 Short Step Low Side. 78" 55 Bolt Set $25 $52 $87 5 lbs
'54-'56 Short Step Low Side. 76" 72 Bolt Set $31 $68 $113 6 lbs
'48-'50 Short Step High Side. 78" 55 Bolt Set $25 $52 $87 5 lbs
'51-'65 Short Step High Side. 76" 70 Bolt Set $30 $65 $110 6 lbs
'65-'80 Short Step High Side. 76" 54 Bolt Set $27 $52 $87 5 lbs
'41-'47 Long Step Low Side. 90" 49 Bolt Set $24 $47 $81 5 lbs
'48-'52 Long Step 89 3/4" 53 Bolt Set $25 $55 $93 6 lbs
'53-'60 Long Step 88" 76 Bolt Set $32 $70 $118 7 lbs
'61-'65 1st ser Long Step  88" 58 Bolt Set $25 $54 $91 6lbs.
'65 2nd ser-'80 Long Step 94" 58 Bolt Set $25 $54 $91 6 lbs
'39-'47 1 Ton Low Side, 108" 56 Bolt Set $29 $61 $104 7 lbs
'46-'50 1 Ton 95-3/4" WDX 75 Bolt Set $34 $80 $110 7 lbs
'48-'52 1 Ton 108" 66 Bolt Set $29 $61 $104 6 lbs
'53-'57 1 Ton  106" 85 Bolt Set $36 $77 $131 6 lbs
'61-'67 1 Ton 94" & 51-68 Power Wagon 74 Bolt Set $32 $69 $119 7 lbs
'65-71 1 Ton 106" 92 Bolt Set $38 $81 $135 8 lbs
Prevent Galling on Stainless Fasteners
We recommend using a liquid thread locker like Loctite or Anti-sieze Compound on the threads of Stainless fasteners.
 Do not use power tools to assemble.
The Bed Floor Skid Strip Bolts should be only tight enough to allow for seasonal movement of the boards and prevent loosening of the fasteners.
Don’t Over Tighten




anti sieze

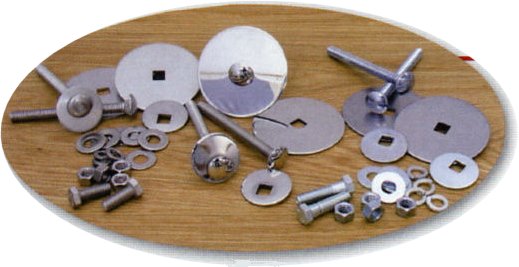

Box to Frame Bolt Sets       Washer Dia. Count         Steel       Stainless       Polished SS Weight
'39-'41 Plymouth 3" 8 Bolt Set $36 $87 $112
'39-'52 Dodge Short Step 3" 6 Bolt Set $28 $66 $85 6 lbs
'53-'60 Dodge Short Step. 1 7/8" 6 Bolt Set $19 $42 $66 6 lbs
'61-'71 Dodge Short Step 1-1/2" 6 Bolt Set $19 $42 $66
'72-'80 Dodge Short Step 1 1/2" 6 Bolt Set $10 $17 $25 5 lbs
'39-'52 Dodge Long Step 3/4 Ton 3" 6 Bolt Set $28 $66 $85 6 lbs
'53-'60 Dodge Long Step                1-7/8" 6 Bolt Set $19 $42 $66
'61-'71 Dodge Long Step 1-1/2" 6 Bolt Set $19 $42 $66
'72-80 Dodge Long Step 1-1/2" 6 Bolt Set $15 $22 $30
 '51-68 1st and 2nd ser PW 1 7/8" 6 Bolt Set $19 $42 $66 6 lbs
'39-'47 Low Side 1 Ton 3" 8 Bolt Set $36 $87 $112 7 lbs
'46-'50 1 Ton 95-3/4" WDX 3" 6 Bolt Set $28 $66 $85 6 lbs
'48-'52 1 Ton 108" 3" 8 Bolt Set $36 $87 $112 7 lbs
'53-'71 1 Ton 1 7/8" 8 Bolt Set $25 $59 $85 6 lbs



WEBBED CUSHION INSULATORS. Use these 1/8" thick pads between  the box and


mounting points. They eliminate squeaking from metal-to-metal contact. Made
from woven waterproof cotton.

Set of 8 $11 6 oz
Set of 12 $16 8 oz


BOX, FENDER and STEP BOLT SET
This set includes enough fasteners to assemble the pickup box, fenders, steps and two heat shields. The custom set has all the exposed parts polished to a mirror finish. Does not include strip or box-to-frame bolts.
'63-'79 Dodge Stepside

Stainless

$148 6 lbs
  Polished Stainless $265 6 lbs
